Form Factor |
- Desktop, small form factor and fanless
|
CPU |
- Intel® Celeron® processor N3350, 2-core, 1.10 GHz (Apollo Lake)
|
Chipset |
|
System Memory |
- 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC memory
|
BIOS |
|
Ethernet |
- 3 x GbE RJ-45 (Intel® I210)
|
LAN Bypass |
|
LAN Module |
|
Storage |
- 1 x M.2 Key B 2242 slot (SATA)
|
Expansion |
- 1 x Full-size PCI Express Mini Card slot (PCIe/USB signal)
- 1 x Nano SIM socket
|

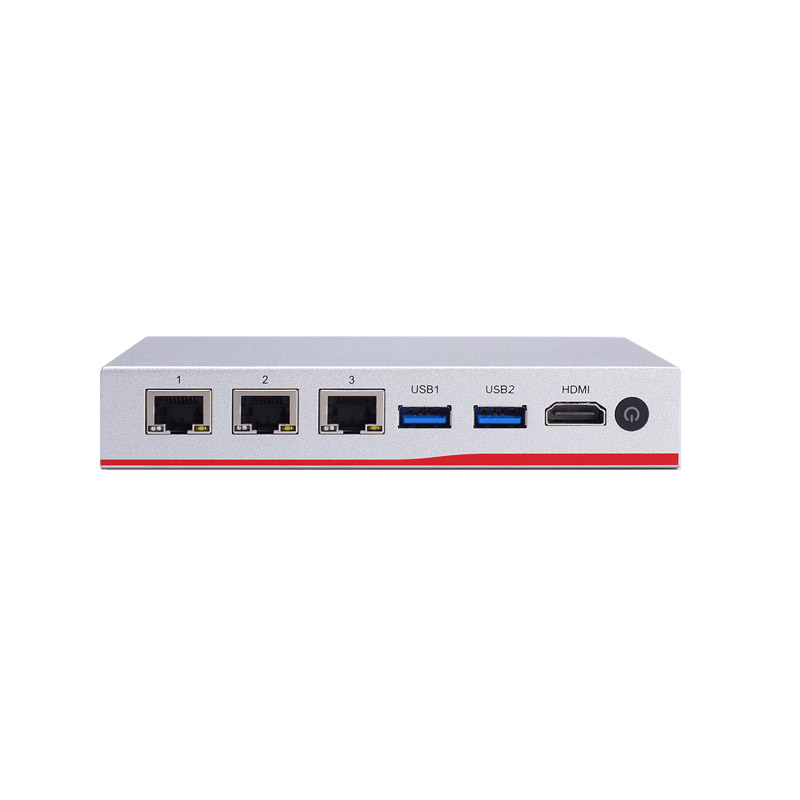

I/O Interface |

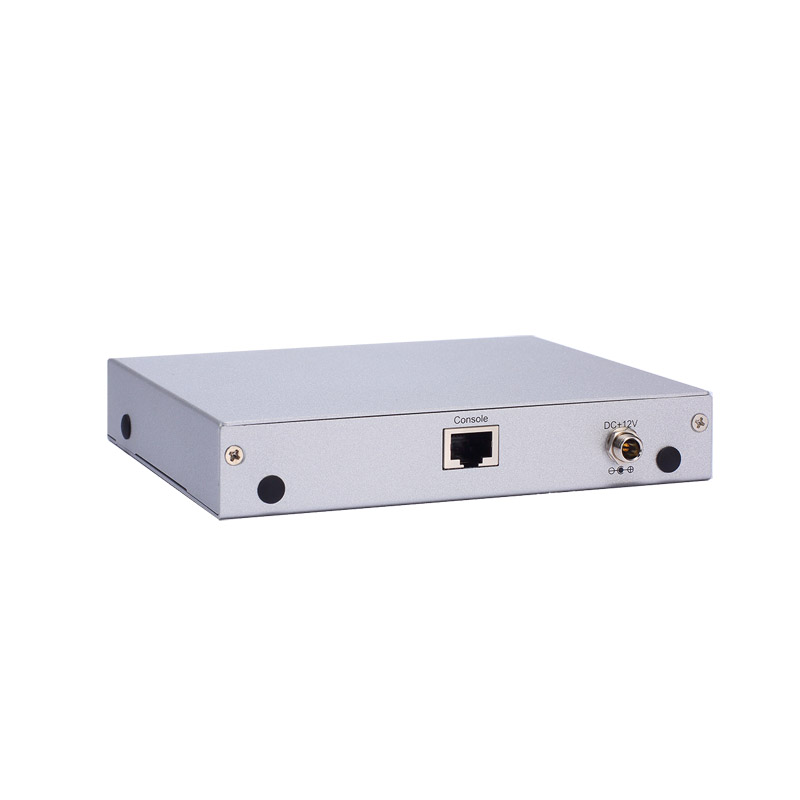

- 1 x Console (RJ-type)
- 3 x RJ-45
- 2 x USB 3.0
- 1 x HDMI
- 1 x DC Jack (Screw type)
- 1 x Power Button with LED
|
Power Supply |
|
LCM Module |
|
TPM |
|
Operating Temperature |
- 0°C to +40°C (+32°F to +104°F)
|
Dimensions (H x W x D) |
- 26 x 146 x 118.2 mm (1.24" x 5.57" x 4.65")
|
Weight (net/gross) |
- 0.284 kg (0.63 lb) / 0.786 kg (1.73 lb)
|
EOS Support |
- Win 10, Linux (Yocto project)
|
Certifications |
|
