Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to announce the arrival of the tBOX100-838-FL, a small footprint fanless embedded system certified with E-Mark and ISO 7637 for vehicle applications. The rugged tBOX100-838-FL comes with the onboard low power quad-core Intel® Atom™ processor E3845 along with onboard DDR3L memory up to 4GB. The compact vehicle PC features five BNC connectors with four video-in and one audio-in as well as one capture card for DVR surveillance applications. In addition, it was designed to withstand a wide temperature range from -40°C to +70°C and vibration up to 3 Grms, equipped with intelligent power management at wide voltage range 9-36VDC. The tBOX100-838-FL is also compliant with EN 50155, EN 50121, DNV 2.4, and IEC 60945 for use in rolling stock and marine industries.
“Axiomtek’s tBOX100-838-FL is our brand new embedded system targeted at vehicle, railway and marine markets. The cost-effective embedded system adopts a heavy-duty aluminum extrusion and steel case to withstand the rigors of day-to-day operation. The compact size of the fanless transportation computer ensures that it can fit into a variety of space constricting environments,” said Jerry Huang, a product manager of Product PM Division at Axiomtek. “To ensure that the system can be integrated into various locations, the tBOX100-838-FL supports DIN-rail and wall mount. The feature-rich system is ideal for security surveillance, transportation controller, data transfer and management.”

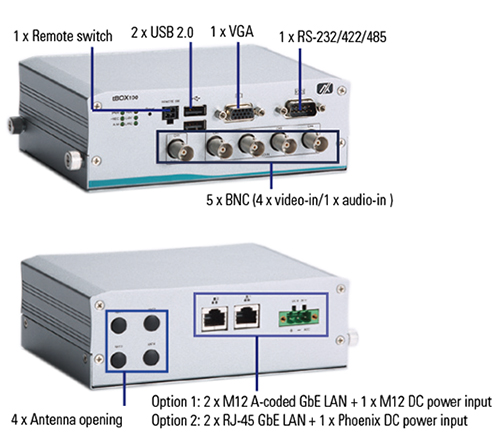

The all-in-one tBOX100-838-FL features multiple I/O design including two GbE LANs (M12 or RJ-45 connector), one DC power input (M12 or phoenix connector), four antenna openings, one COM, five BNC (four video-in and one audio-in), one VGA, two USB 2.0 ports, one remote power switch, and one reset button. The unit comes with one full-sized PCI Express Mini Card slot and one SIM card slot for 3G/4G, GPS, Wi-Fi and Bluetooth applications. For system integrators with extensive storage needs, the Intel® Atom™-based transportation box PC offers one 2.5” SATA HDD and one mSATA. Besides, the significant anti-vibration can endure up to 3 Grms with SSD and 1 Grm with HDD to prevent any damage caused by vibration.
The tBOX100-838-FL - Axiomtek’s rugged embedded computer for transportation - is expected to be available in mid-August, 2017. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at [email protected].
Main Features
- CE (Class A), E-Mark and ISO 7637 certified; EN 50155, EN 50121, and DNV 2.4, IEC 60945 compliant
- Intel® Atom™ E3845 [email protected] GHz onboard (codename: Bay Trail)
- DDR3L-1333 4GB memory onboard
- Wide operating temperature of -40°C to +70°C
- Intelligent power management solution (9-36VDC wide power input)
- Compact size, multiple I/Os, DIN-rail and wall mount
- 1 PCI Express Mini Card slot and 1 SIM card slot
