Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched eBOX626-841-FL, a cost-effective fanless embedded box system utilizing a dual core Intel® Atom™ processor E3826 1.46 GHz onboard. The incredible ultra-slim fanless embedded computer supports one DDR3L-1066/1333 SO-DIMM socket with system memory up to 8 GB, and offers two full HD displays: HDMI and VGA, four USB ports, and three COM ports to provide higher performance with full-featured I/O. Integrated single-chip design, the brand new embedded system is lighter and thinner compared to previous eBOX620 series, and able to operate in a wide temperature ranging from -20°C to +60°C and wide DC input power ranging from 10 to 34VDC. The industrial grade eBOX626-841-FL is a reliable computing embedded solution to facilitate various applications in both critical environment and general commercial business such as digital signage, transportation, kiosk, industrial control automation, smart industrial IoT gateway, and medical equipment.
“The high quality mini-sized eBOX626-841-FL delivers excellent computing performance per watt at an affordable price, and its IP40-rated enclosure made of rugged aluminum cold-rolled steel can perfectly protect it from vibration up to 3Grms. To meet the diversity needs of network and wireless communications, the powerful embedded platform supports dual PCI Express Mini Card slots with USB and PCI Express connections and one SIM slot for high-bandwidth expansions such as GPS, GSM/GPRS, Wi-Fi, 3G/LTE, and more. The versatile embedded box PC not only maintains its high performance but also offers more competitive price,” said Vincent Ji, product manager of Product & Marketing Division at Axiomtek.

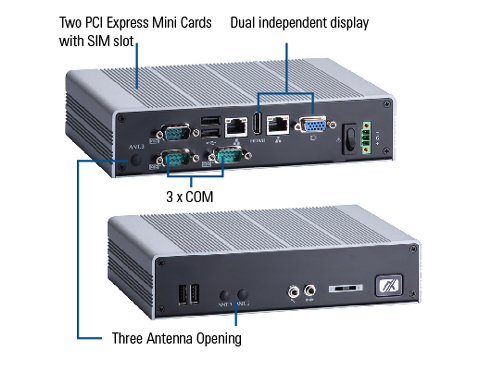

With full-featured of I/O interfaces, the extreme compact Intel® Atom™-based eBOX626-841-FL supports two RS-232/422/485 ports, one RS-232 port, VGA, HDMI, audio, dual Gigabit Ethernet LAN ports, four high-speed USB 2.0, three SMA type connector openings for antenna, one VDC power input connector, and one ATX power switch. One 2.5" SATA HDD drive bay and mSATA are also embedded in the embedded computer to possess sufficient storage.
Axiomtek’s power-efficient embedded system eBOX626-841-FL is going to be available in early April, 2015. For more product information or pricing, please visit us at www.axiomtek.com or contact one of our sales representatives at [email protected].
Advanced Features:
- Fanless, noiseless operation design with full-featured I/O
- Intel® Atom™ E3826 1.46GHz dual-core SoC onboard
- High performance 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB
- 2 RS-232/422/485, 1 RS-232 and 4 USB ports
- One 2.5” SATA drive bay and mSATA supported
- 2 PCI Express Mini Card slots and 1 SIM slot
- Supports VGA and HDMI dual display
- Wide temperature ranging from -20°C to +60°C
- 10-34VDC wide range DC input
