- LGA1151 socket 9th/8th gen Intel® Core™ processor, up to 65W
- NVIDIA® GPU card, up to 125W
- Supports NVIDIA® A2 GPU
- M.2 Key B slot for 5G wireless connection (optional)
- Supports RAID 0,1(Intel® Q370)
- Supports Power-on delay function
- Supports TPM 2.0
- Supports AMT 12 (Intel® Q370)
Axiomtek’s IPC962-525 has been validated as an NVIDIA-certified edge computer, proving the performance for AI workloads.
Compatible w/ A2 GPU
The IPC962-525 functions effortlessly with the A2 GPU; the combination can provide powerful computing capability.
High-scalable Design for Diverse Industrial IoT Applications
The IPC962-525 features the 9th gen Intel® Core™ processor and provides flexible I/O configurations in USB, Serial, and LAN. It has two high-speed PCIe/PCI slots for GPU, vision, motion, data acquisition and frame grabber cards. The system has an M.2 Key B slot for 5G deployment and a full-size PCI Express Mini Card slot for Wi-Fi, Bluetooth and 4G/LTE modules. It also has VGA and HDMI for display. As to system and data stability and security, it supports TPM 2.0 and RAID 0,1. In addition, it has a wide operating temperature range of -10°C to +60°C for mission-critical edge environments.
Exclusive Air Duct
With an exclusive air duct in the system, it brings air straight to the A2 GPU to lower the temperature to maintain high performance.
Two 2.5" swappable HDDs/SSDs supporting RAID 0,1 and one M.2 Key M 2280 socket are available for extensive storage needs.
Flexible Expansion Options
The IPC962-525 has an optional extension I/O module slot with four choices of I/O modules including AX93511, AX93516, AX93519 and AX93512. Moreover, it provides two high-speed PCIe/PCI slots that have two different combinations of expansion kits: AX96205, AX96206 and AX96207.

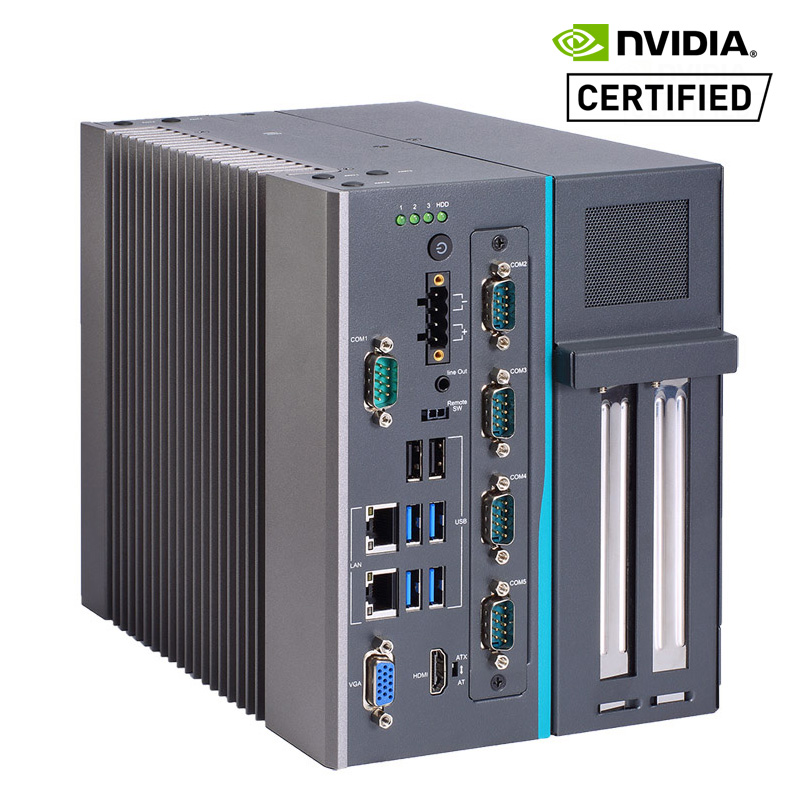

Front-facing I/O Connectors
The IPC962-525 comes with a wide choice of I/O interfaces including two GbE LAN ports, one COM port, seven USB ports, one VGA port, one HDMI port, one 4-pin terminal block, and one audio (Mic-in/out).
