Features
- CE, FCC and E-Mark certified
- LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel® C246
- Fanless and Wide operating temperatures from -40°C to +70°C

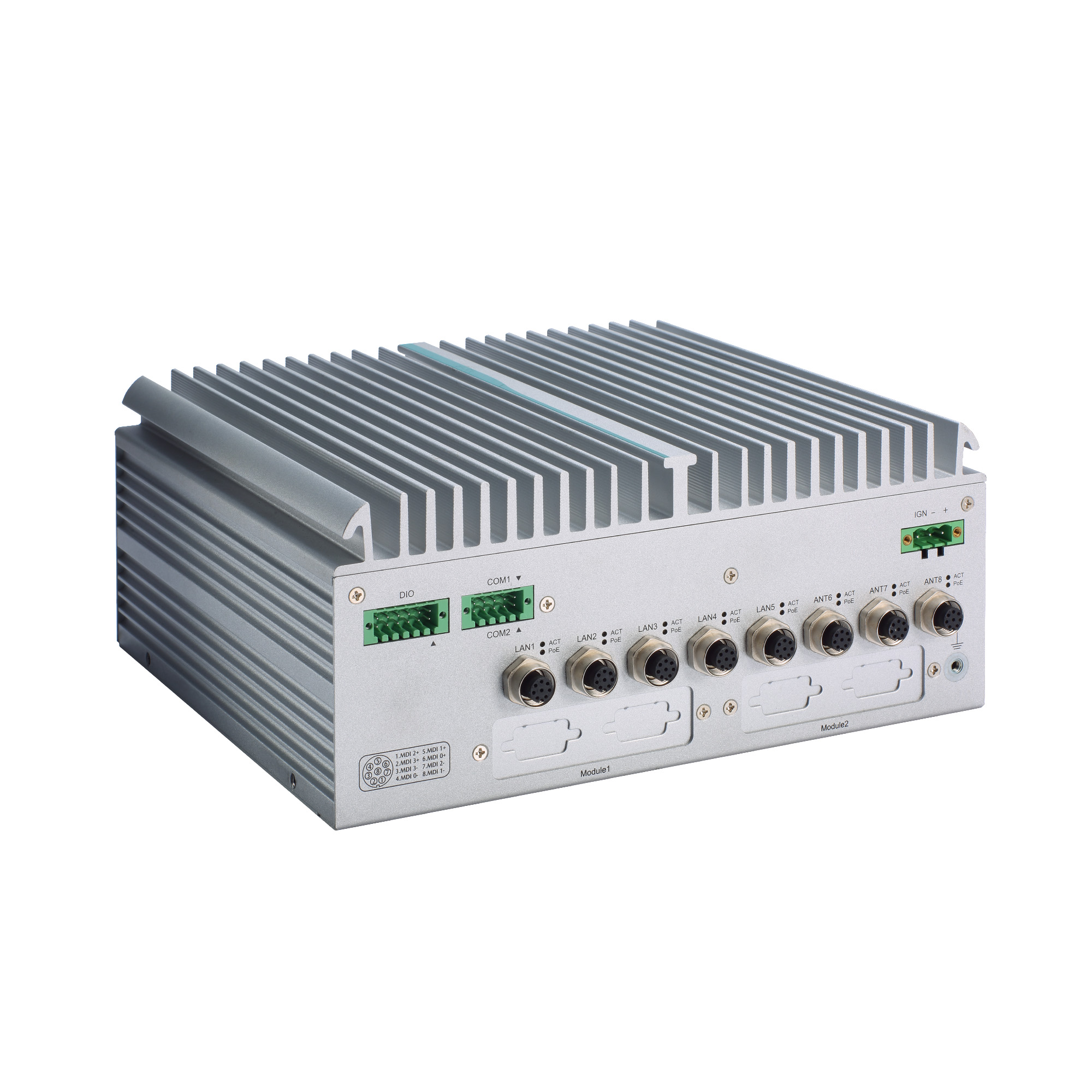

- Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
- Supports M.2 Key B and M.2 Key E for wireless communication module
- Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
- Convenient swappable HDD/SSD slots and flexible I/O windows
Introduction

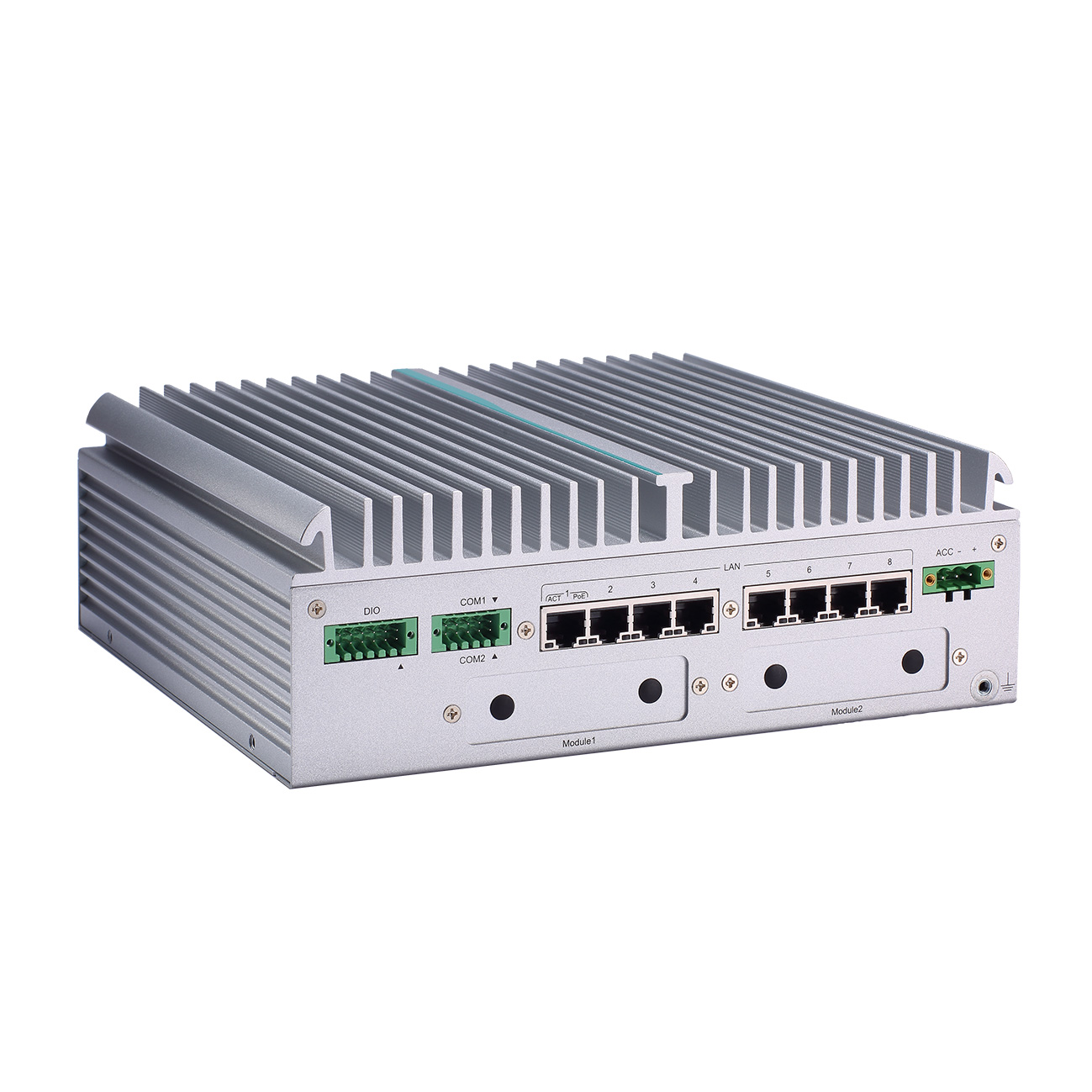

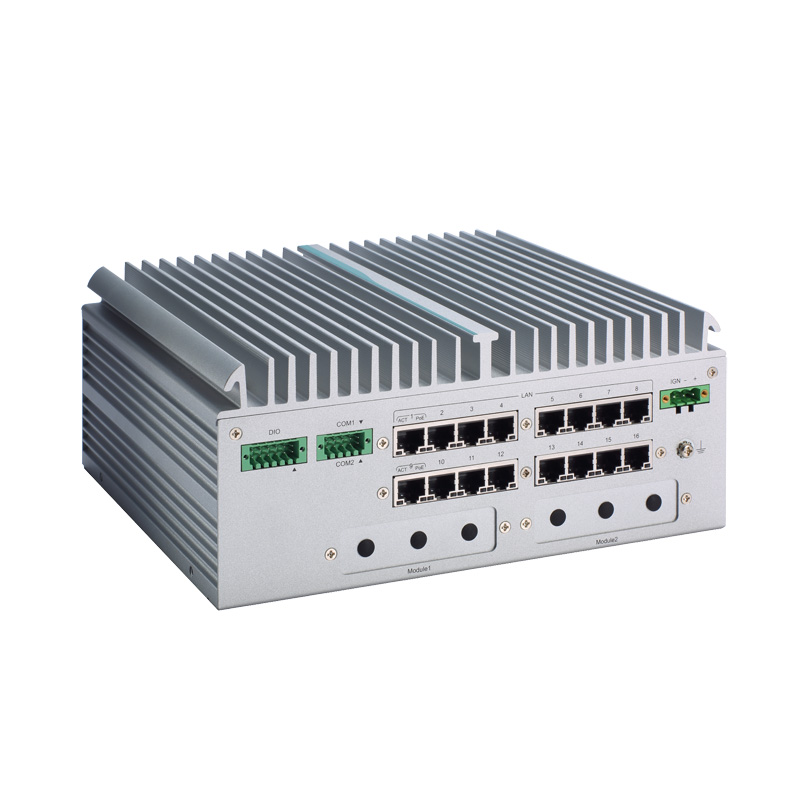

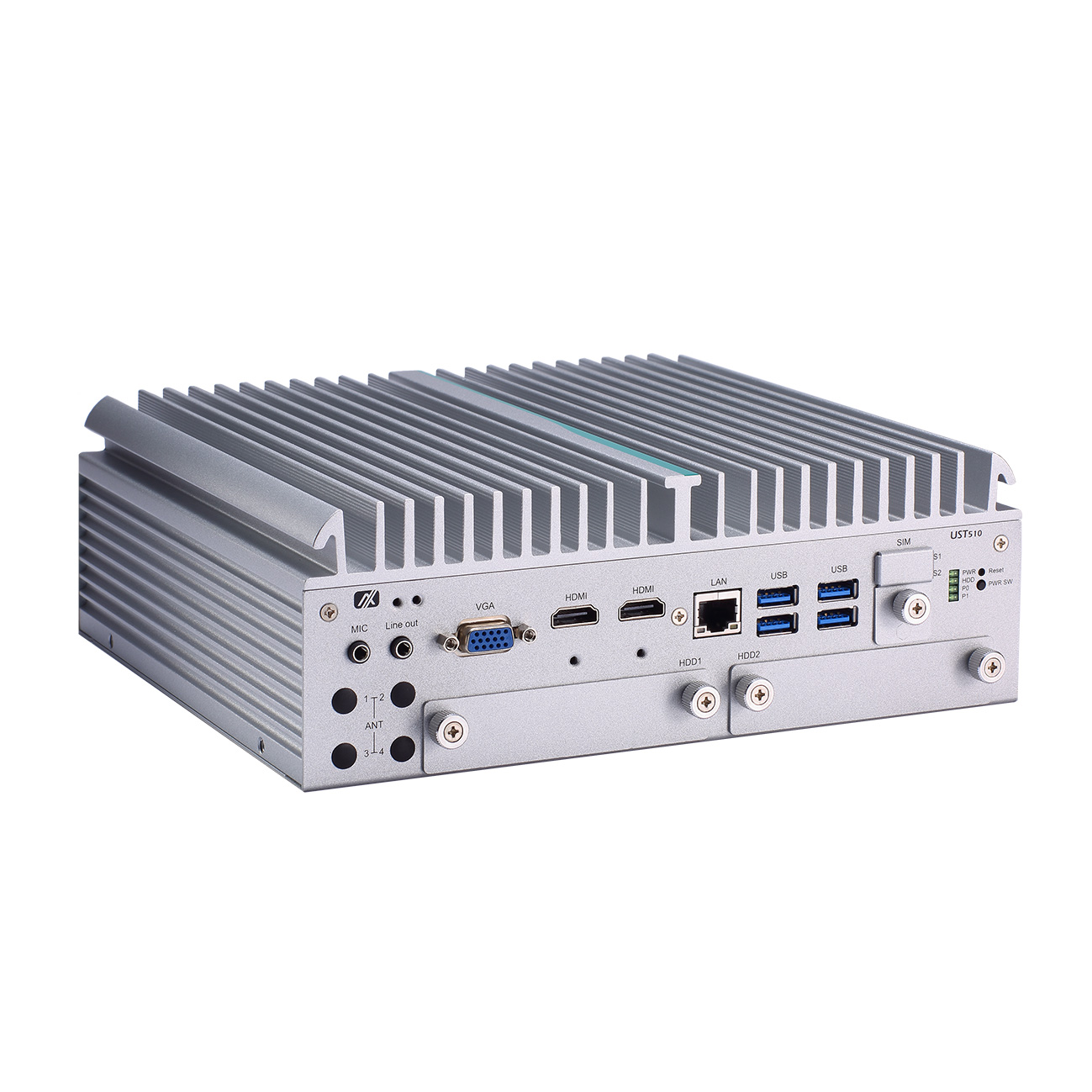

The tBOX324-894-FL is a multi-functional fanless embedded computer certified with EN 50155, E-Mark, DNV 2.4, EN 45545-2, and IEC 60945 for use in a variety of transportation applications. Thanks to the onboard 7th generation Intel® Core™ processors, the tBOX324-894-FL provides powerful computing performance in a compact size within which a modular I/O design has enhanced the operational efficiency and flexibility. The transportation box PC is equipped with two DDR4-1866/2133 SO-DIMM slots supporting up to 32GB of system memory. To suit the need for extensive storage, it is equipped with two swappable 2.5” SATA3 HDDs and one CFast™ slot. The application-ready tBOX324-894-FL is an outstanding embedded box PC for transportation-related applications such as train management, truck fleet management, transportation controller, data transfer, security surveillance, and onboard infotainment controller in the vehicle, railway, and marine markets.
