| CPU |
- Intel Atom® x6212RE processor, 1.2GHz/2C/6W
- Intel Atom® x6414RE processor, 1.5GHz/4C/9W
|
| Chipset |
|
| System Memory |
- 1 x DDR4-3200 SO-DIMM, up to 32GB
|
| COM |

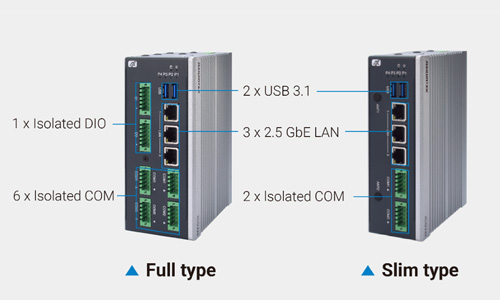

- 2 x Terminal block isolated RS-232/422/284 (for slim type)
- 6 x Terminal block isolated RS-232/422/485 (for full type)
|
| USB |
|
| Ethernet |
- 3 x RJ-45 isolated 2.5 GbE LAN (Intel® I226-IT)
- Isolation voltage: 1.5 kV
|
| PoE |
|
| CANbus |
|
| Digital I/O |
- 1 x Isolated 8-in/8-out DIO (for full type)
|
| Analog Input |
|
| Display |
- 1 x HDMI (up to 1920 x 1080 @60Hz)
|
| Expansion |
- 1 x M.2 Key B 3050/3052 slot: PCIe/USB 3.2/USB 2.0 (for Wi-Fi/5G with SIM slot)
- 1 x full-size Rev. 1.2 PCI Express Mini Card slot: USB 2.0 (for Wi-Fi/LTE with SIM slot)
- 1 x half-size Rev. 1.2 PCI Express Mini Card slot: PCIe/USB 2.0/SATA (for Wi-Fi/mSATA)
|
| Storage |
- 1 x internal 2.5" SATA Drive
- 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
- 1 x eMMC (optional)
|
| Others |
- TPM 2.0

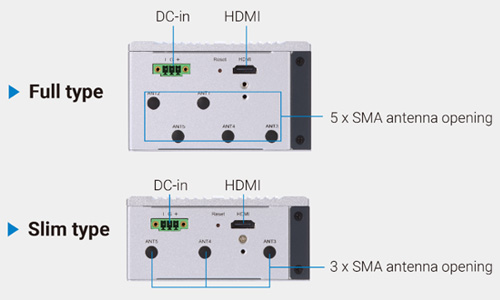

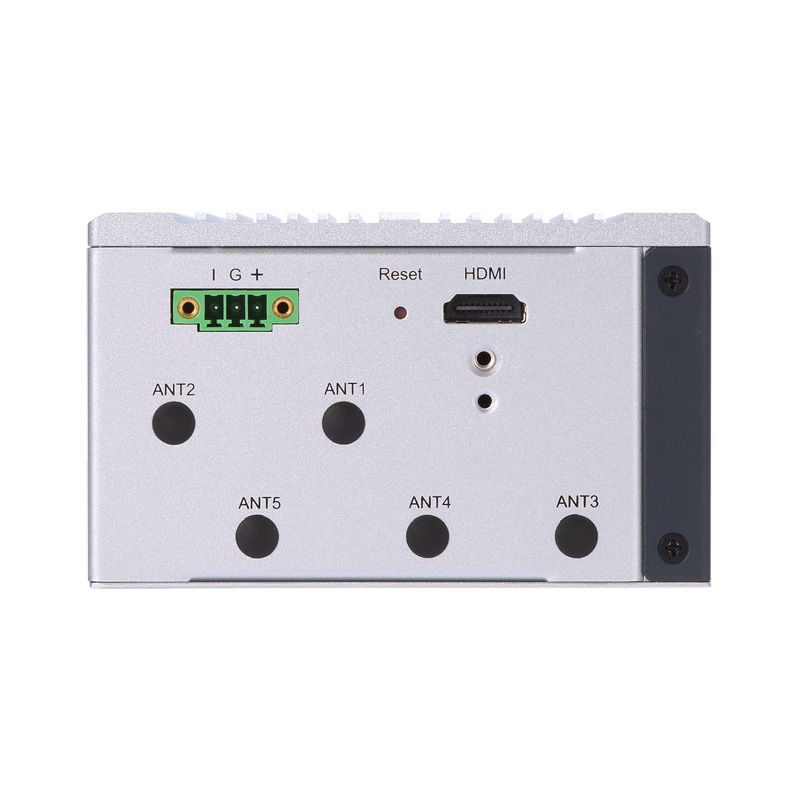

- 5 x Antenna opening
|
| Power |
- 1 x Terminal block, 9 to 36 VDC, typical 12/24V
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Extruded aluminum and heavy-duty steel, IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F)
- Cold boot at -40°C
|
| Relative Humidity |
|
| Vibration |
- 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
|
Dimensions
(W x D x H) |
- Slim type: 55 x 110 x 155 mm (2.48" x 4.33" x 6.1")
- Full type: 66 x 110 x 155 mm (2.48" x 4.33" x 6.1")
|
| Weight (net/gross) |
- Slim type: 1 kg (2.2 lb)
- Full type: 1.5 kg (3.3 lb)
|
| Certifications |
- CE (Class A), FCC (Class A)
|
| EOS Support |
|
| Software Support |
|

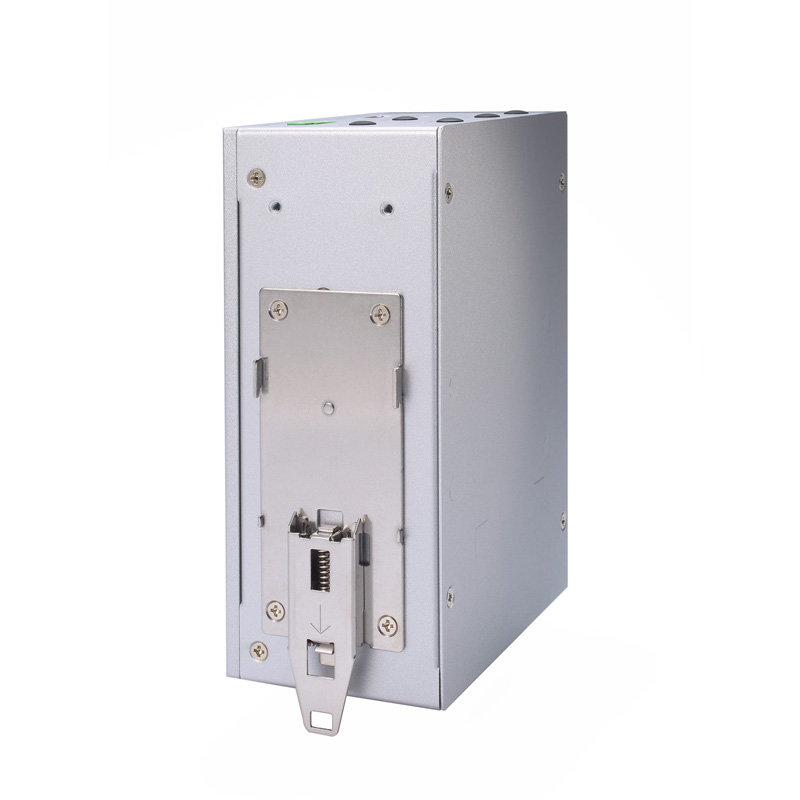

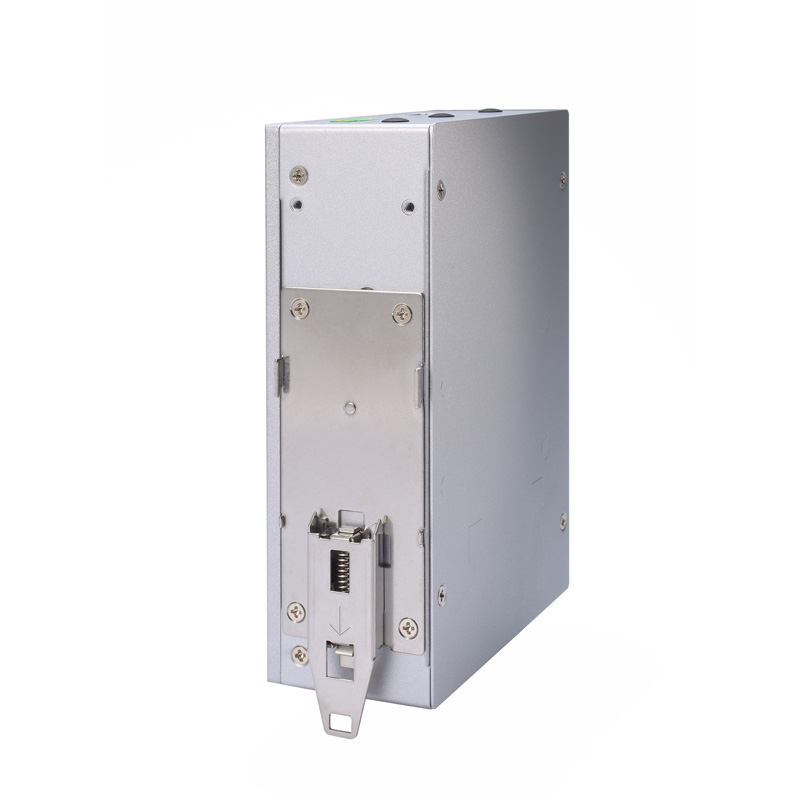

| Mounting |
|
