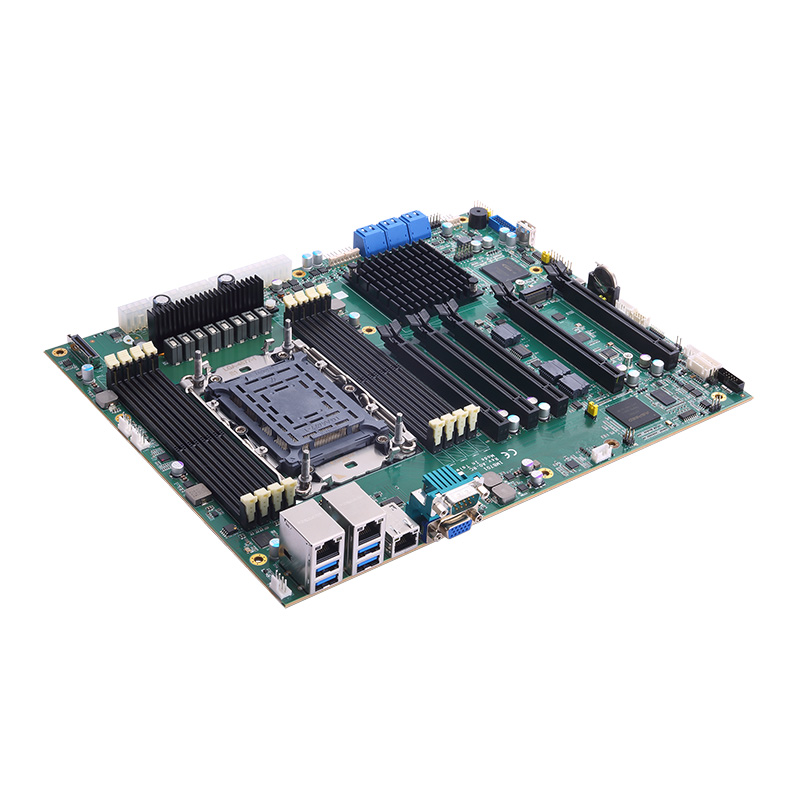

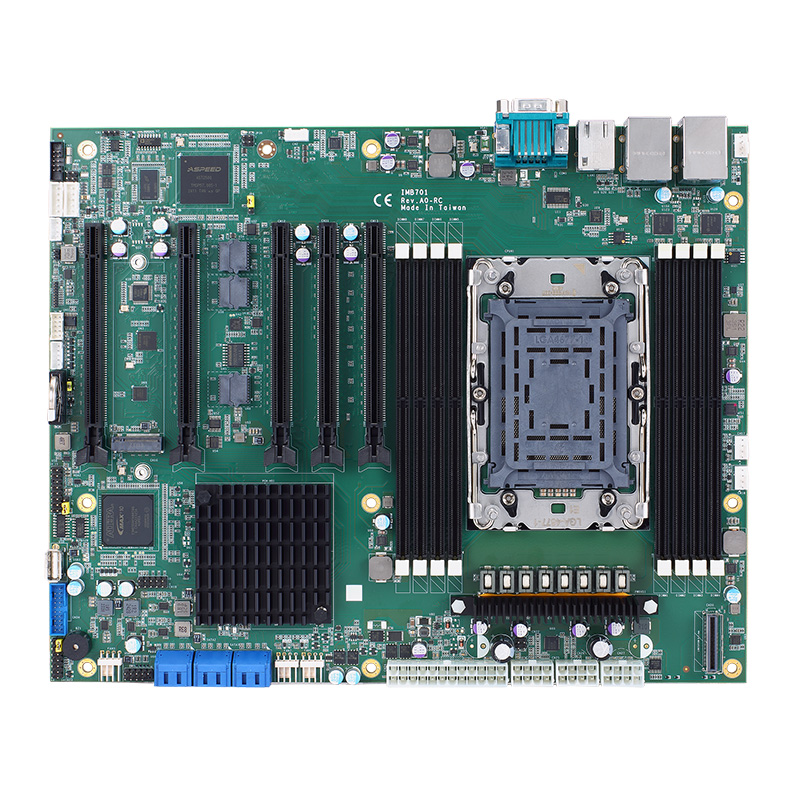

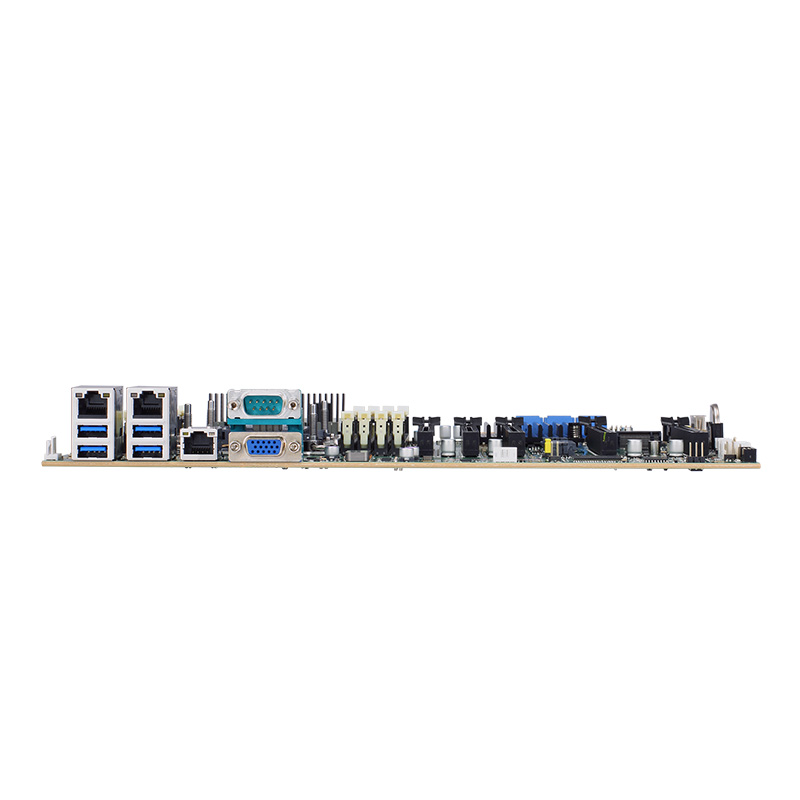

Features
- 5th/4th gen Intel® Xeon® Scalable processors (Platinum, Gold, Silver, and Bronze), up to 350W TDP
- 8 DDR5-5600 R-DIMM ECC, up to 512GB memory
- 5 PCIe x16
- Supports M.2 Key M and MCIO
- Supports IPMI 2.0 and Redfish API
- Supports multiple graphic cards
- Supports internal USB dongle
Introduction
The CAPA55R is powered by the 11th Gen Intel® Core™ i7/i5/i3 & Celeron® processors (code name: Tiger Lake-UP3) with 28W cTDP and Intel® Iris® Xe Graphics. The industrial-grade embedded board features triple-display capability through HDMI 1.4, LVDS and DisplayPort++ interfaces, making it well-suited for graphics-intensive applications. This industrial motherboard is designed for operational stability with a wide operating temperature range from -20°C to +60°C. The CAPA55R is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.
