Features

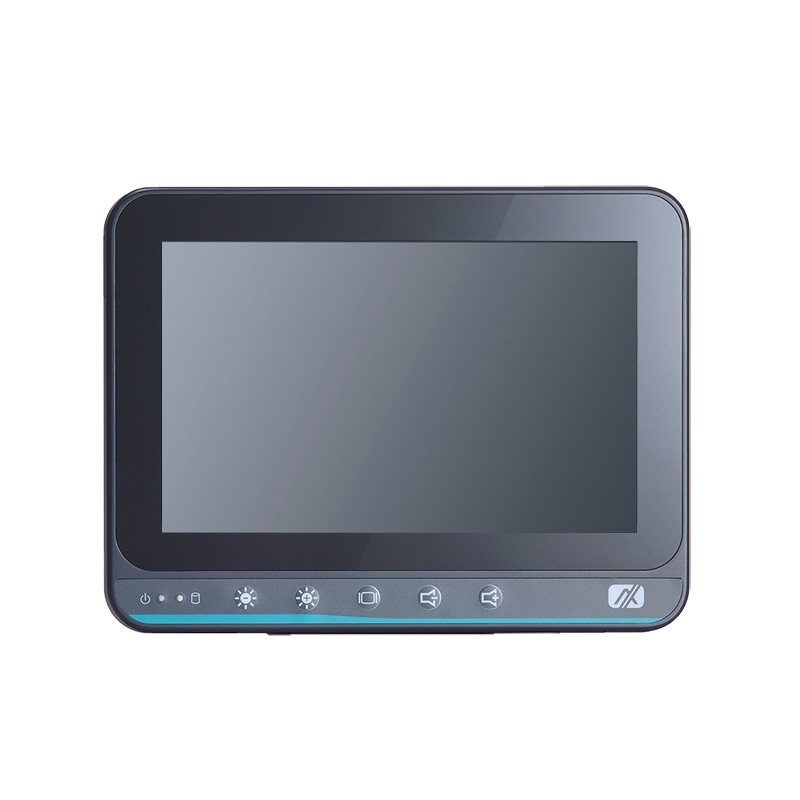

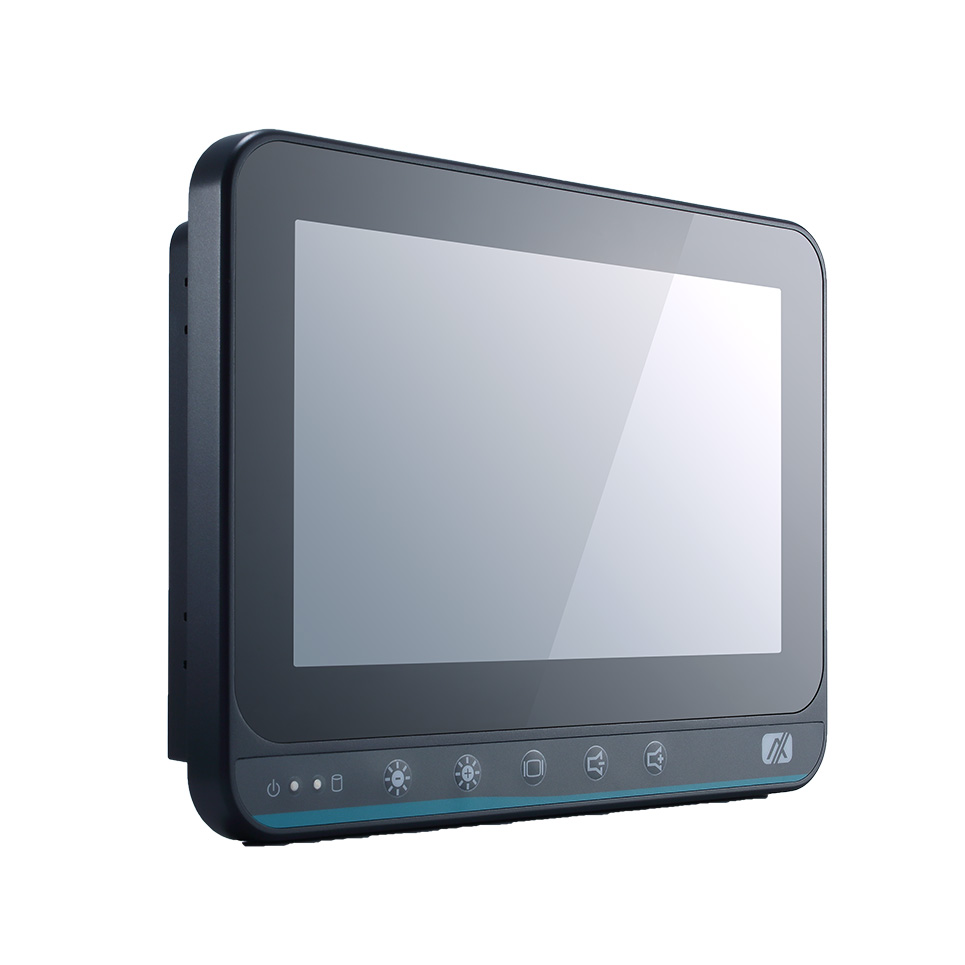

- 7" WSVGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® Processor N4200

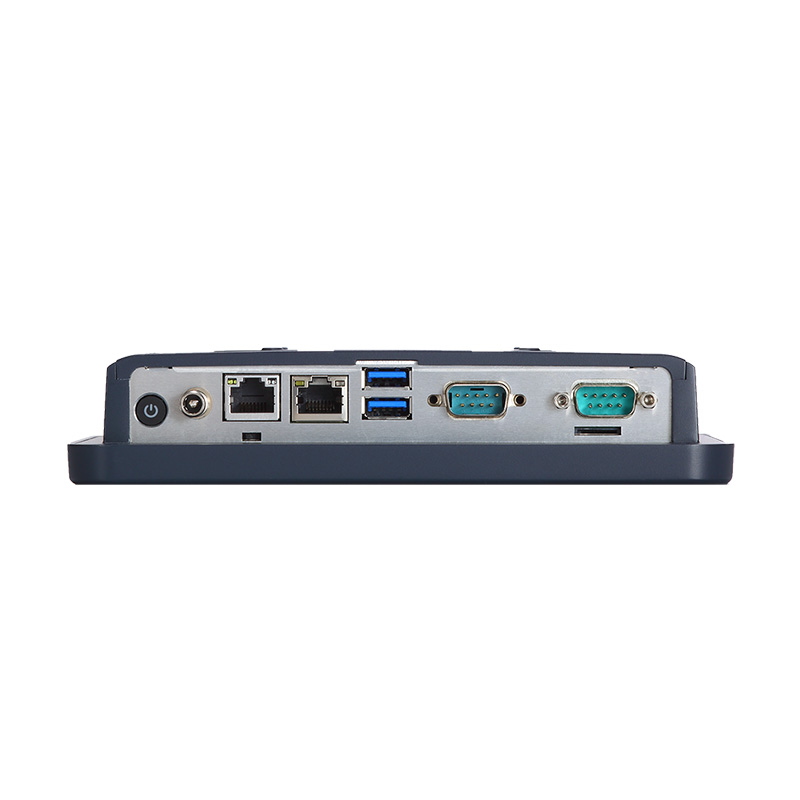

- 2 GbE LAN, 2 USB, and 2 COM ports
- Plastic and IP65-rated front bezel
- External AT/ATX mode selection switch
- Easy access storage & RAM design
- Supports panel mount, wall mount, VESA arm, and desktop stand
- RS-232/422/485 with RI/5V/12V selectable via BIOS
- Programmable OSD function key
Introduction
The UST500-517-FL is powered by the LGA1151 socket 7th/6th generation Intel® Core™ and Pentium® processors up to 65W with the Intel® Q170 chipset. The integrated 16 PoE ports are available in RJ-45 or M12 connectors for IP cameras. It provides a full scope of power protection that includes intelligent vehicle power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. Enhanced by its robust structure and system design, the UST500-517-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration endurance up to 3 Grms. This transportation embedded box is in compliance with ISO 7637-2 and EN 50155 for mobile surveillance applications. There are 16 Gigabit LAN ports which support 802.3at/af Power over Ethernet with a total power budget of 200W. Its DVI-D, HDMI and VGA interfaces support three surveillance monitors. Furthermore, its external accessible SIM card slot enables users to easily change SIM card for different telecommunication service. With wireless LAN modules, this user-friendly transportation embedded system can real-time transmits the video to the control center. The two built-in or four swappable SATA hard drives are used for mass storage of video files.
